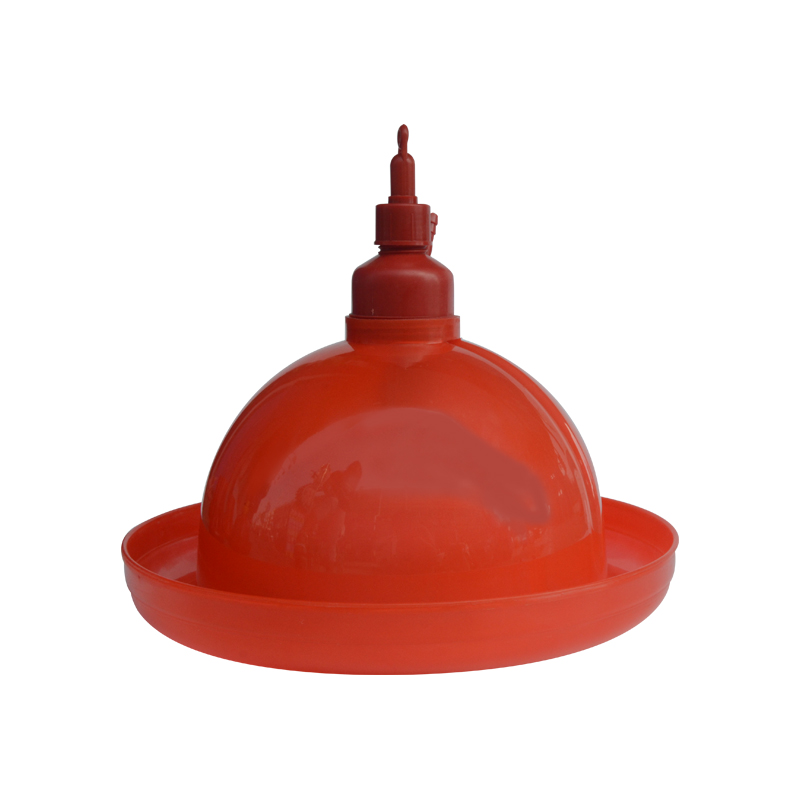

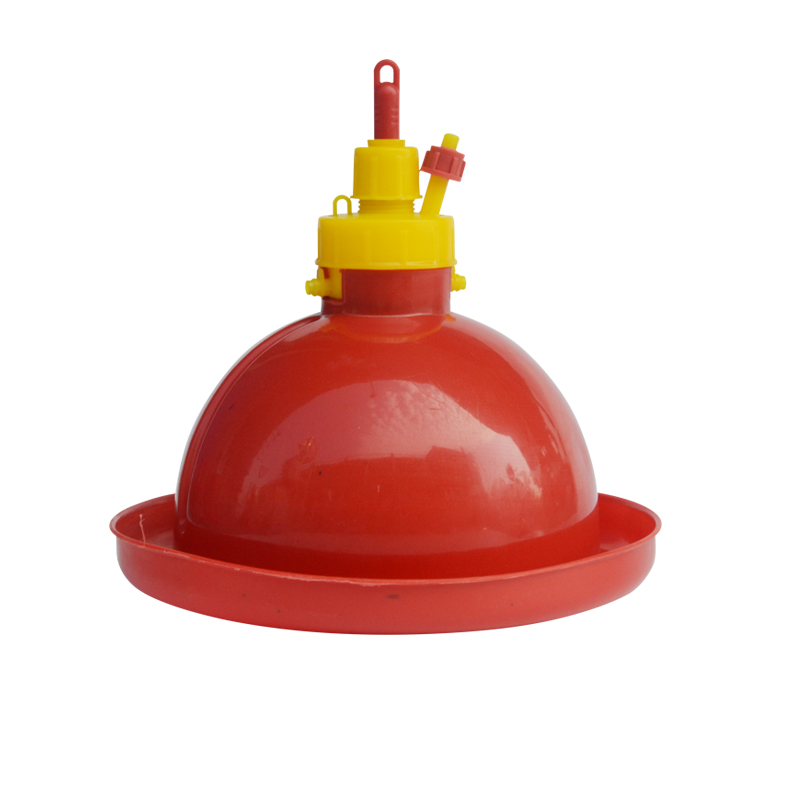

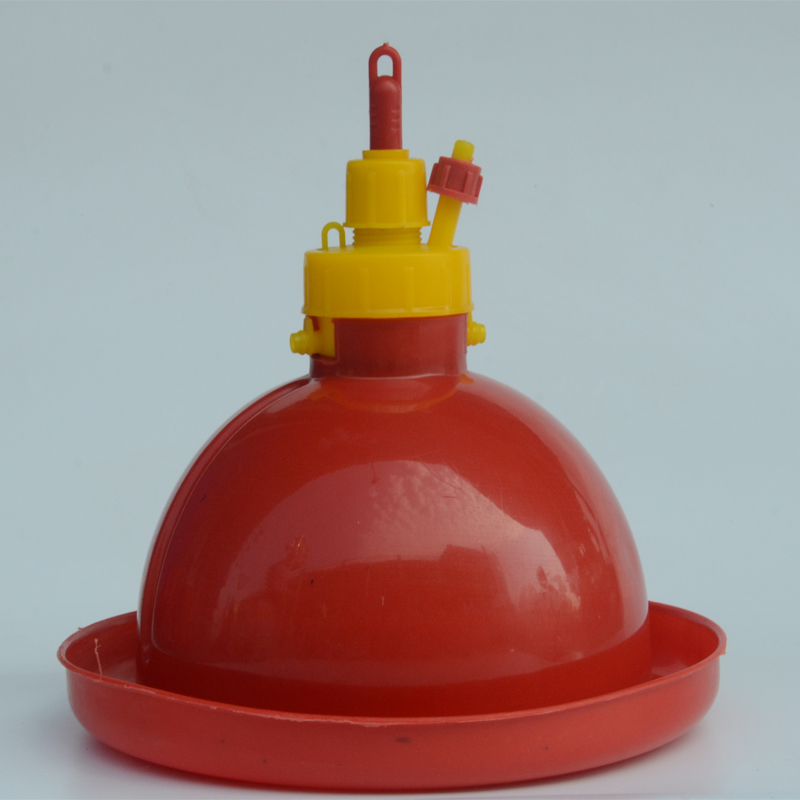

Plasson Bell Automatic Poultry Drinker
Product Overview
Plasson bell drinker is the classic gravity automatic water supply equipment for floor-rearing poultry farms, widely used for broilers, layers, breeders, ducks and geese. It adopts balance valve design to maintain constant water level automatically, providing clean fresh water for poultry from day-old chicks to adult birds. It always forms a complete automatic breeding system matched with Plasson disc feeding line.
Complete Structure Components
Bell-shaped thickened housing: Integrally molded of virgin low-pressure polyethylene, UV-resistant and impact-resistant, smooth inner surface prevents limescale and bacteria growth.
Balance weight tank: Built-in water weight chamber stabilizes the whole unit to avoid tipping when pecked by flocks, keeps constant water level steadily.
Spring sealed water control valve assembly: High-tensile stainless steel spring and food-grade silicone gasket, automatically replenish water when water level drops and cut off water when full, zero continuous leakage.
Splash-proof water tray: Wide annular sink prevents water splashing, keeps litter dry inside the house.
Inlet soft tube & control ball valve: Standard 8mm water pipe with independent switch, easy to shut off single drinker for cleaning and maintenance.
Hanging loop on top: Adjustable hanging height to fit poultry of all growth stages.
Two Main Standard Sizes
Small Chick Model
Tray diameter 23.5cm, total height 25cm, suitable for 0–14 days baby chicks, serves 30–50 chicks per unit.
Large Universal Model for Adult Poultry
Tray diameter 34cm, new design total height 33cm, fits grown chickens, ducks and geese, serves 80–100 birds per drinker.
Key Advantages
Fully automatic constant water level, greatly save labor cost
Connect to running water pipe for auto water refilling, no daily manual water adding required for large poultry houses.
Clean water source reduces poultry diseases
Semi-enclosed bell cover blocks manure and dust from polluting water, fresh running water lowers incidence of intestinal and respiratory diseases.
Water-saving & dry litter condition
Precise sealing valve eliminates dripping, saves over 70% water compared with open troughs, dry litter effectively reduces coccidiosis risk.
All growth stages compatible
Adjustable hanging height works for day-old chicks, pullets and market broilers without equipment replacement.
Easy to disassemble & low maintenance cost
All spare parts can be detached for thorough cleaning and disinfection; worn springs and gaskets are replaceable separately, no need to change the whole set.
Weather-resistant & long service life
Virgin anti-aging PE plastic lasts 3–5 years in humid & high-light poultry houses, resistant to collision damage by flocks.
Application Scope
Floor-rearing broiler houses, meat breeder farms, free-range chicken farms, duck & goose breeding sheds, chick brooding houses. Matched with Plasson automatic disc feeding line for full set automatic breeding equipment, suitable for small backyard farms and large commercial poultry bases.
