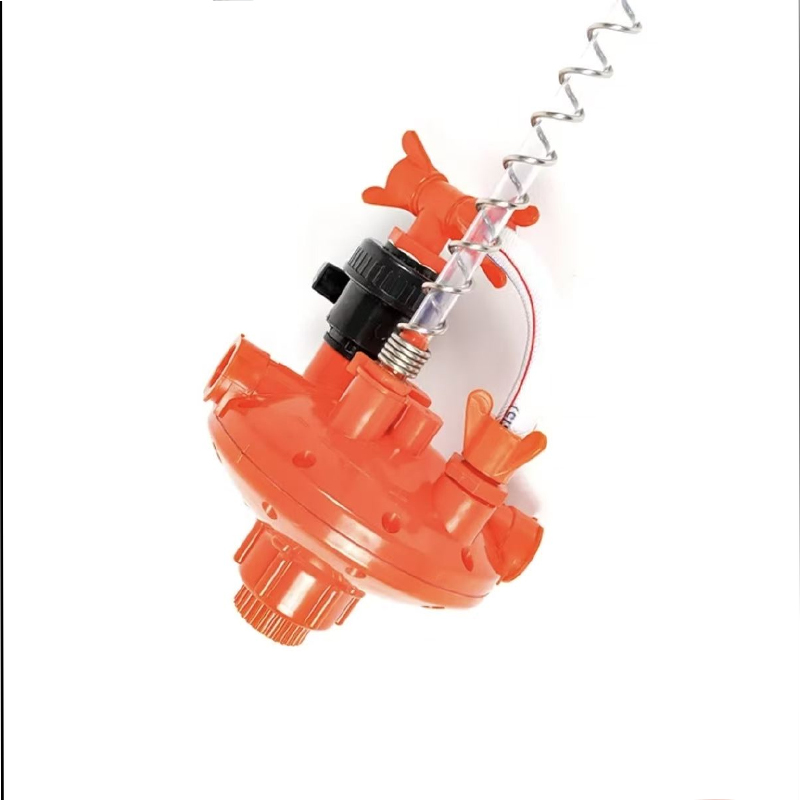

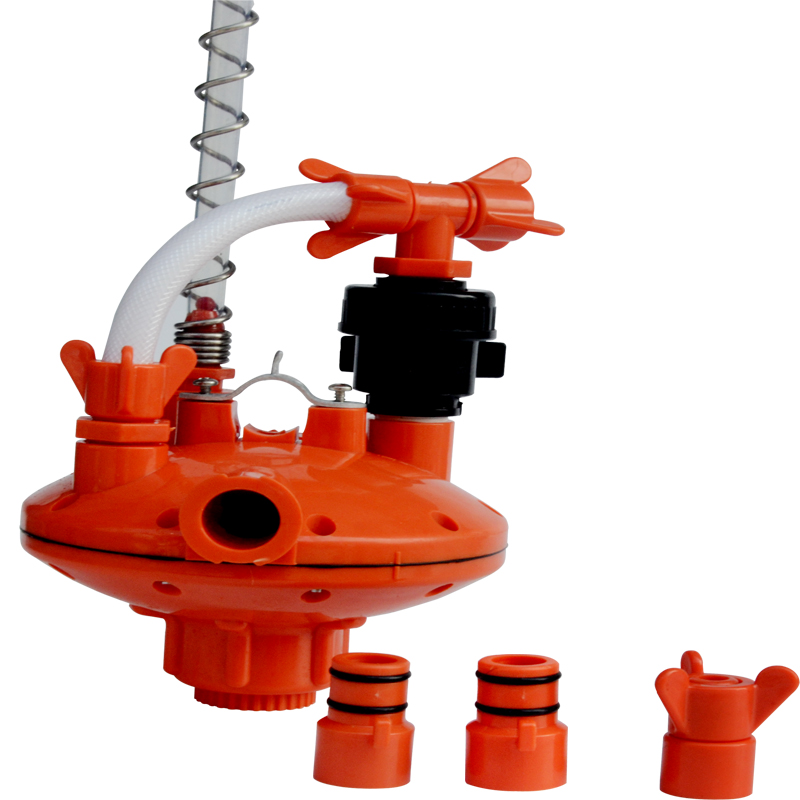

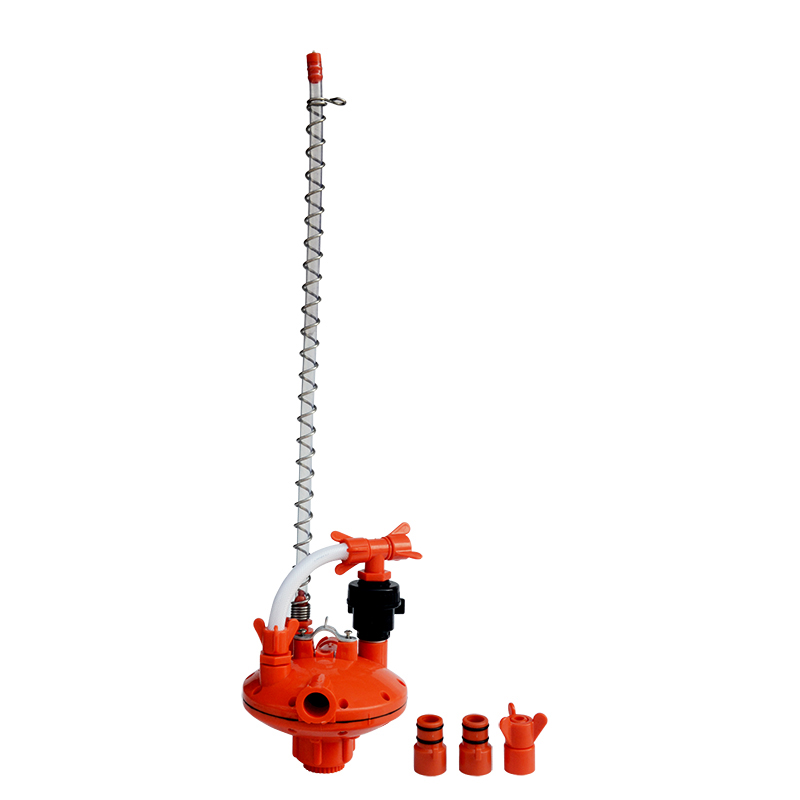

Orange Forward Flush Poultry Water Line Pressure Regulator (With Telescopic Metal Drain Hose)
Product Overview
This orange pressure regulator is a special voltage stabilizing device matched with round PVC water pipes and white clip nipple drinkers. It fits 4-tier A-type stepped layer cages and small-medium water line systems for brooding houses. As an upgraded version of red forward flush regulator, it is equipped with retractable stainless steel spiral drain hose for better anti-freeze drainage. Multiple quick conversion connectors are attached to fit different inlet pipe diameters. Widely used in small & medium chicken houses within 70 meters and cold breeding farms in northern areas.
Main Components
Orange thickened engineering plastic main body: Built-in silicone diaphragm and spring pressure stabilizing system, with quick-connect ports for 20/25mm round pipes on both sides and sewage outlet at bottom.
Telescopic corrugated stainless steel drain hose: Freely stretchable & shape-retaining, corrosion-resistant and anti-aging, achieves more thorough drainage than ordinary plastic hoses to prevent pipe cracking in cold winter.
Independent drain pipeline & orange three-way ball valve: Switch the valve to realize high-flow forward flushing to wash sediment and medicine residue inside pipes, and drain all residual water when equipment stops working.
Black pressure adjusting knob: Rotate to fine-tune water pressure, suitable for chicks, pullets and laying hens at all growth stages.
Multi-size supporting quick connectors: Compatible with various inlet pipe sizes, hand-installed without glue for tight sealing.
Key Advantages
Constant pressure stabilization: Balances fluctuating inlet water pressure, ensures even water output of all nipple drinkers, avoids water splashing or insufficient water supply.
Forward high-flow flushing: High-speed water flow along normal supply direction removes algae and vaccine residue inside pipes, reduces bacterial growth.
Powerful anti-freeze drainage: Extended retractable metal drain hose can lift the water outlet to fully empty residual water in pipelines, ideal for northern farms with freezing winter.
Wide pipe compatibility: Equipped with multiple conversion connectors for fast installation on new or renovated chicken houses.
Reserved port for pressure gauge: External thread on top allows pressure gauge installation for visual & precise pressure control.
Thickened anti-corrosion housing: Resists acid, alkali and high humidity inside poultry houses for long service life.
Application Scope
Cages: 4-tier A-type stepped laying hen cages, broiler brooding sheds, pullet houses;
Water pipes: 20/25mm round PVC drinking pipes, matched with white clip nipple drinkers as complete set;
Farm scale: Small & medium cage houses within 70 meters, hatchery brooding workshops;
Climate: Northern breeding areas with low temperature and frozen pipe risk in winter;
Supporting equipment: Round pipe pre-filter, water line lifting hand winch, PVC plastic feeding trough.
